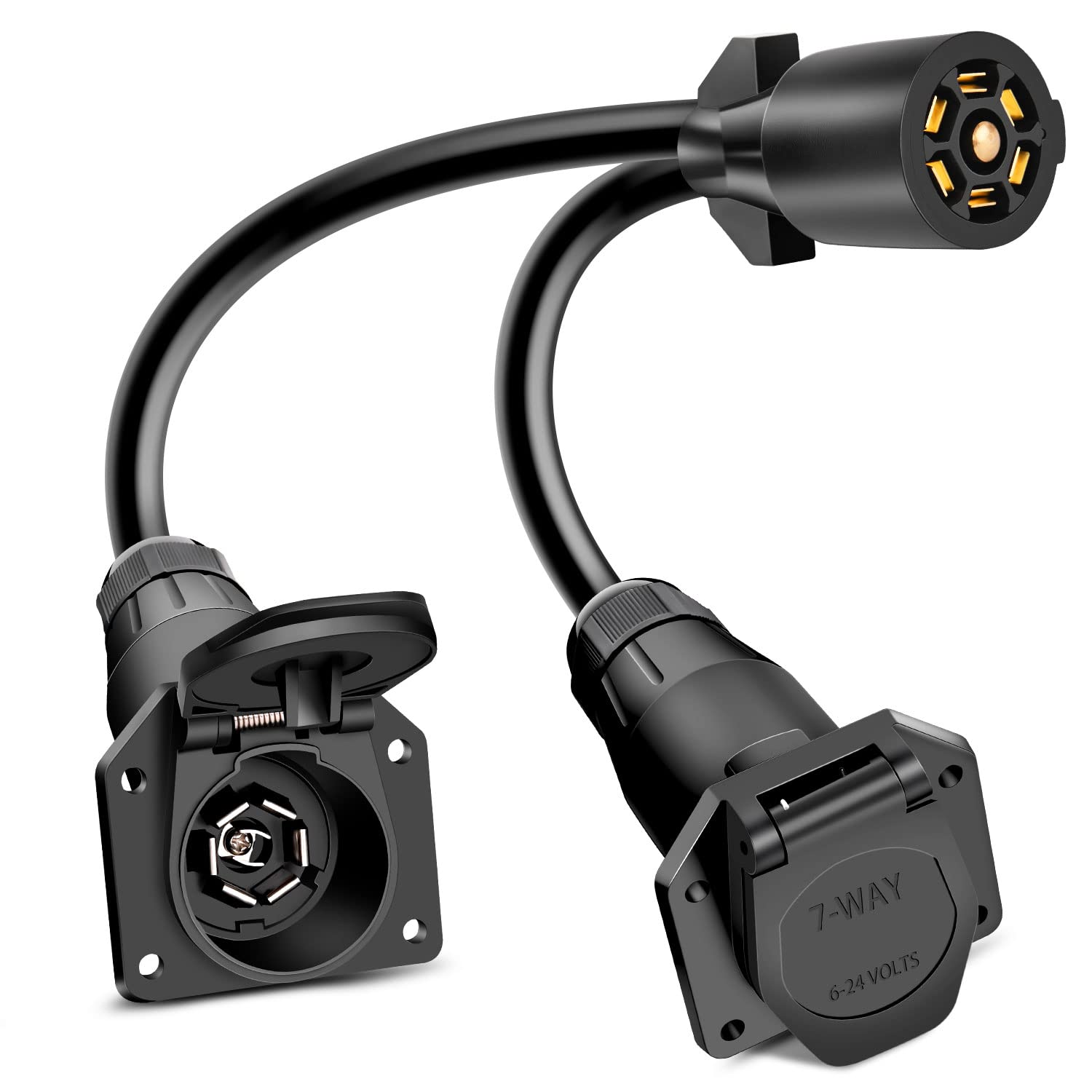

Nilight 7 Way Trailer Plug Y Pigtail Splitter Double Brasse 7Pin Female to Dual Male Trailer Plug Round Blade Connector for Connecting Slide in Truck Camper and Trailer Y Splitter

Brand: Nilight

Color: Y Splitter Trailer Plug

Features:

• Application: This trailer Y splitter combines 1 female plug and 2 male plugs. It is a Female that plugs into your Truck and 2 Male plugs that you can plug a Trailer into then you have a spare plug. With this product, you can run the lights on the slide-in camper and boat trailer at the same time. Suitable for the most truck which has a 7-way round plug, including trailers, RVs, campers, boat trailers, and trucks.
• Double Trailer Combination: It is used for towing a double trailer combination. This 7 Way Female to Dual 7 Way Male plug is commonly used at half-ton, 3/4-ton, one-ton, long bed, short bed, dually or whatever type of truck as long as it equips with 7 pin RV socket. You can pull a trailer behind the truck with a slide in camper in the bed so you need plug ins for both. This is a great alternative to running another wiring harness and connector to the side of the bed.

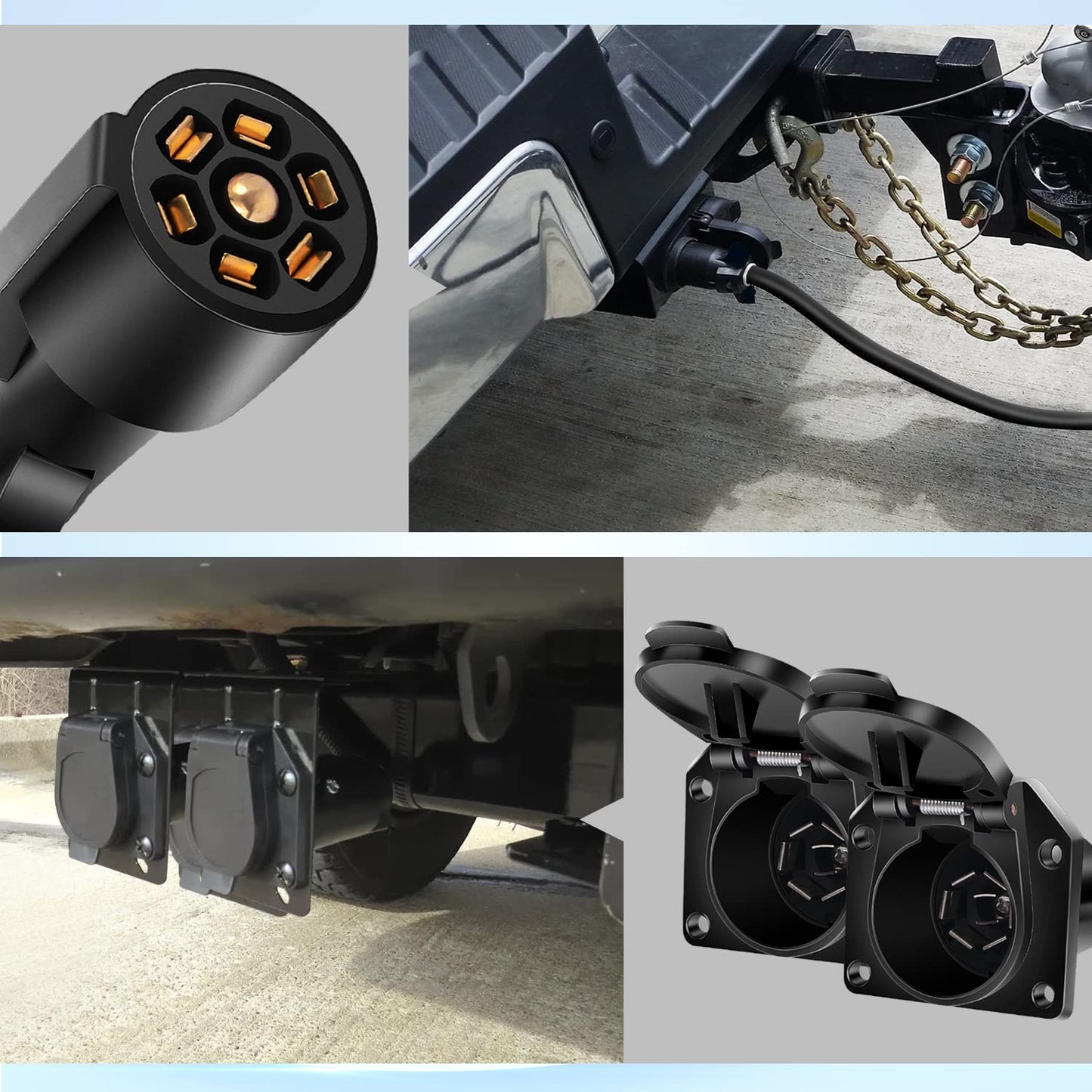

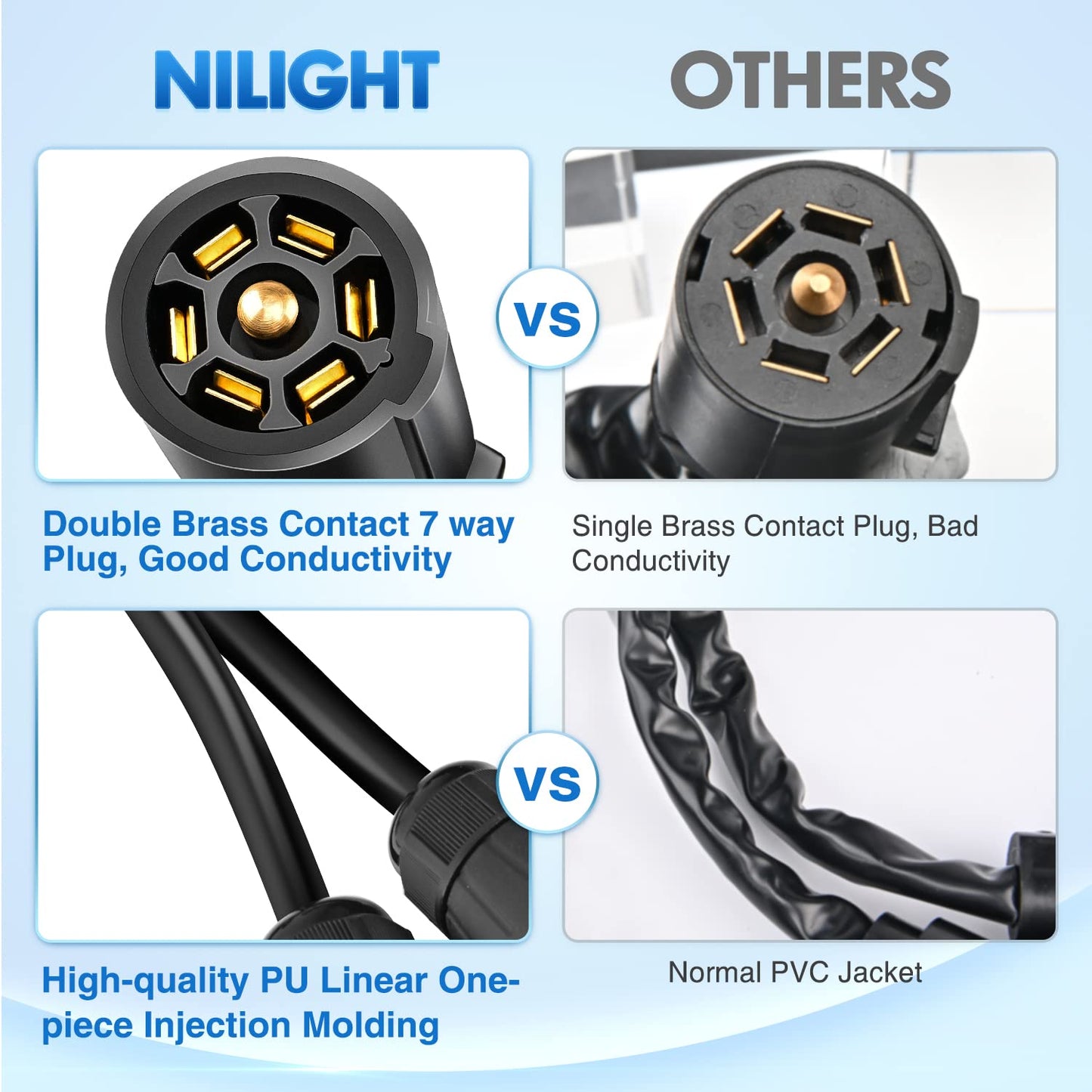

• Durable Construction: For long-lasting use and a reliable connection, the double prong brass contact for the female plug has a outstanding contacts which is better than the single prong plugs. And the housing of the 7-pin socket is made from durable molded black plastic and has a spring-loaded dust cover to protect the connection points. Protect it from heavy rain, snow and mud.
• Easy Installation: Simple Plug and Play design makes easy installation, this 7 way trailer splitter requires no cutting or splicing, just plugs into the existing sockets and you are able to run the lights on your slide in truck camper and trailer at the same time with this 7 way Y splitter.
• Package Includes: 1x 7 Way Y Splitter (1 Female End to 2 Male End).

Binding: Automotive

model number: 50078A

Part Number: 50078A

Details: Nilight 7 Way Trailer Plug Y Splitter

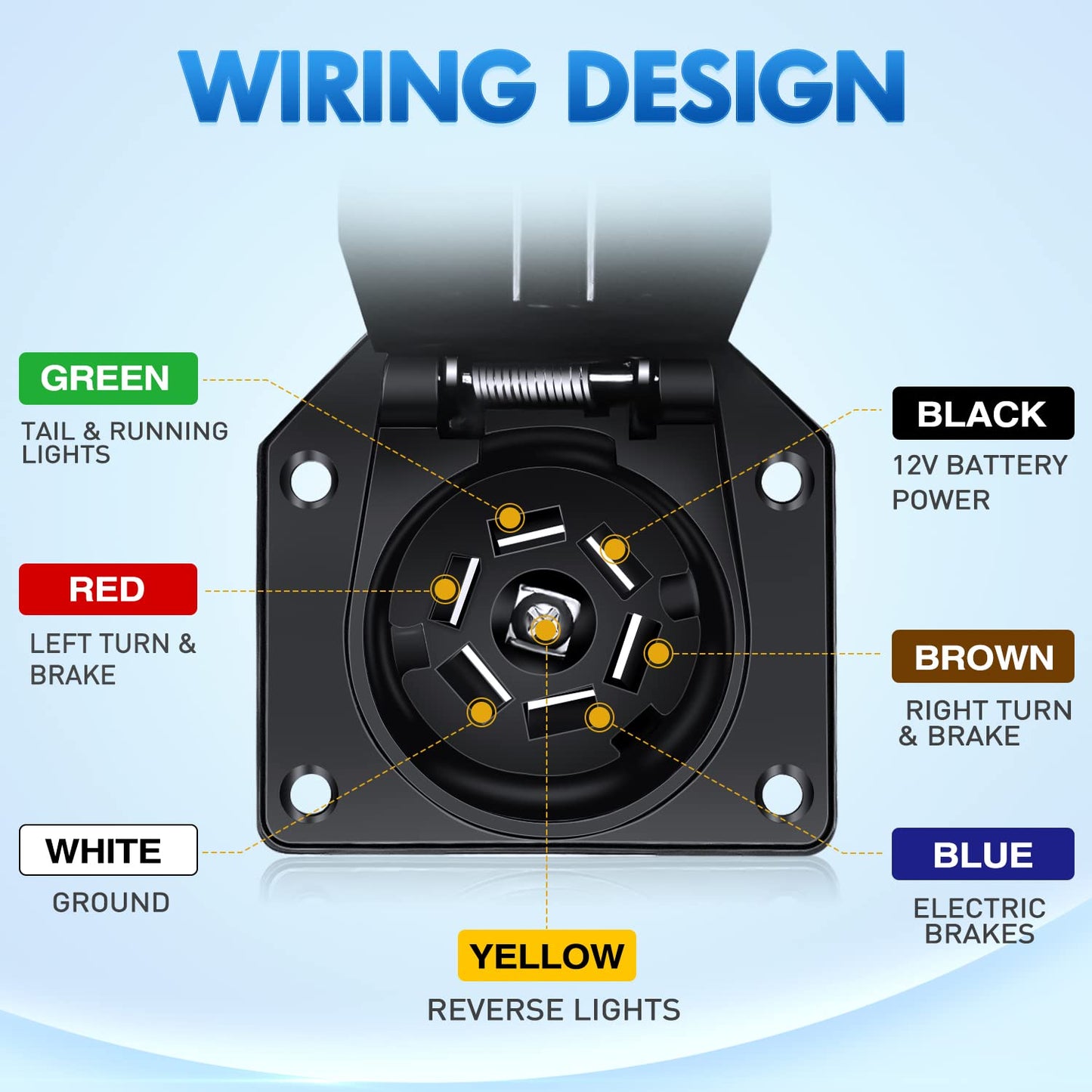

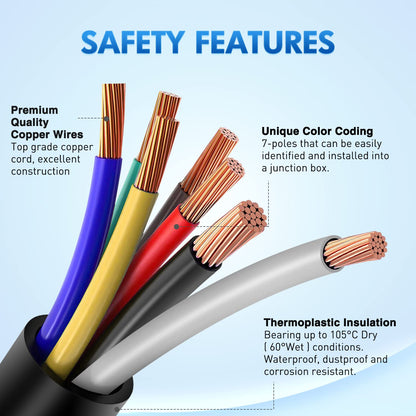

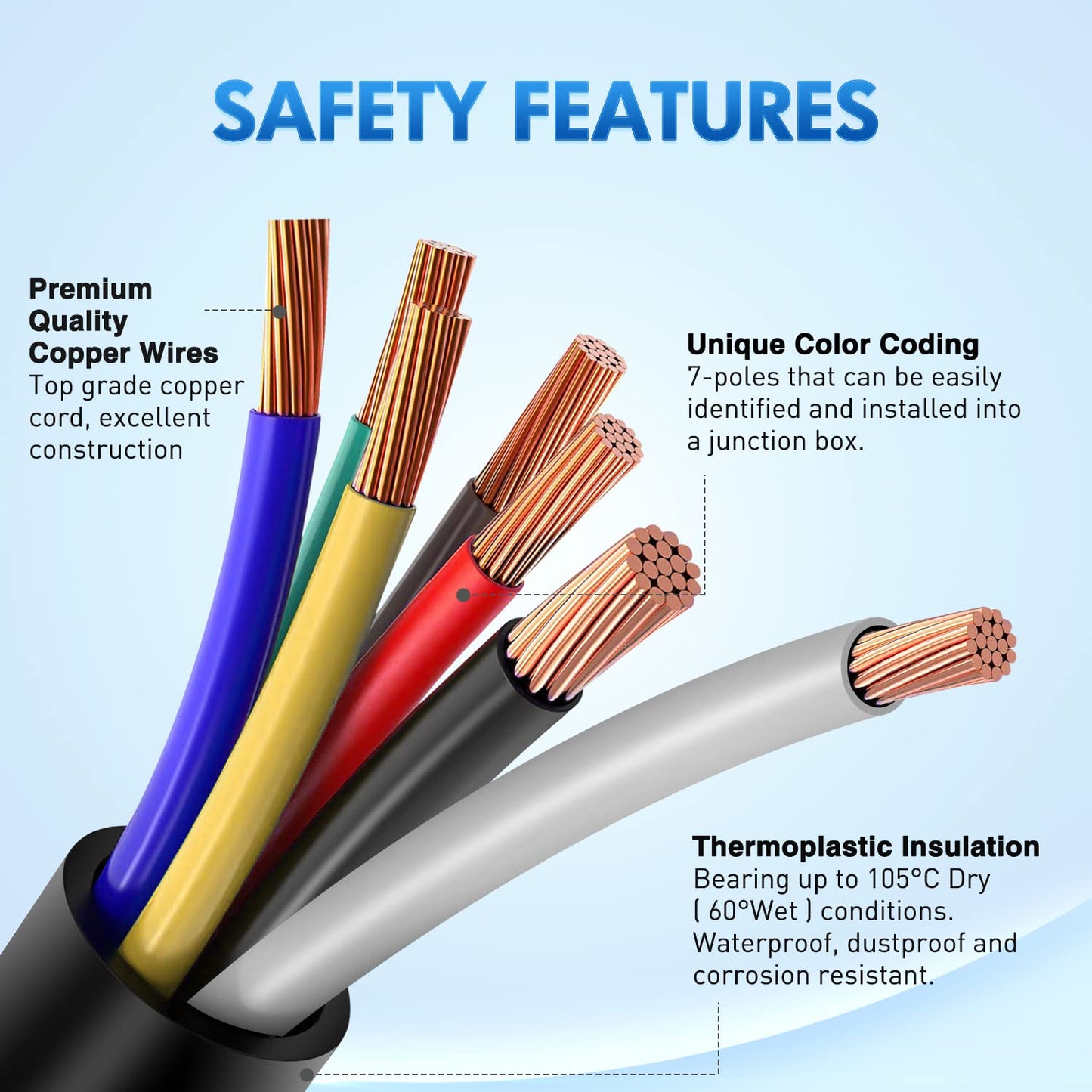

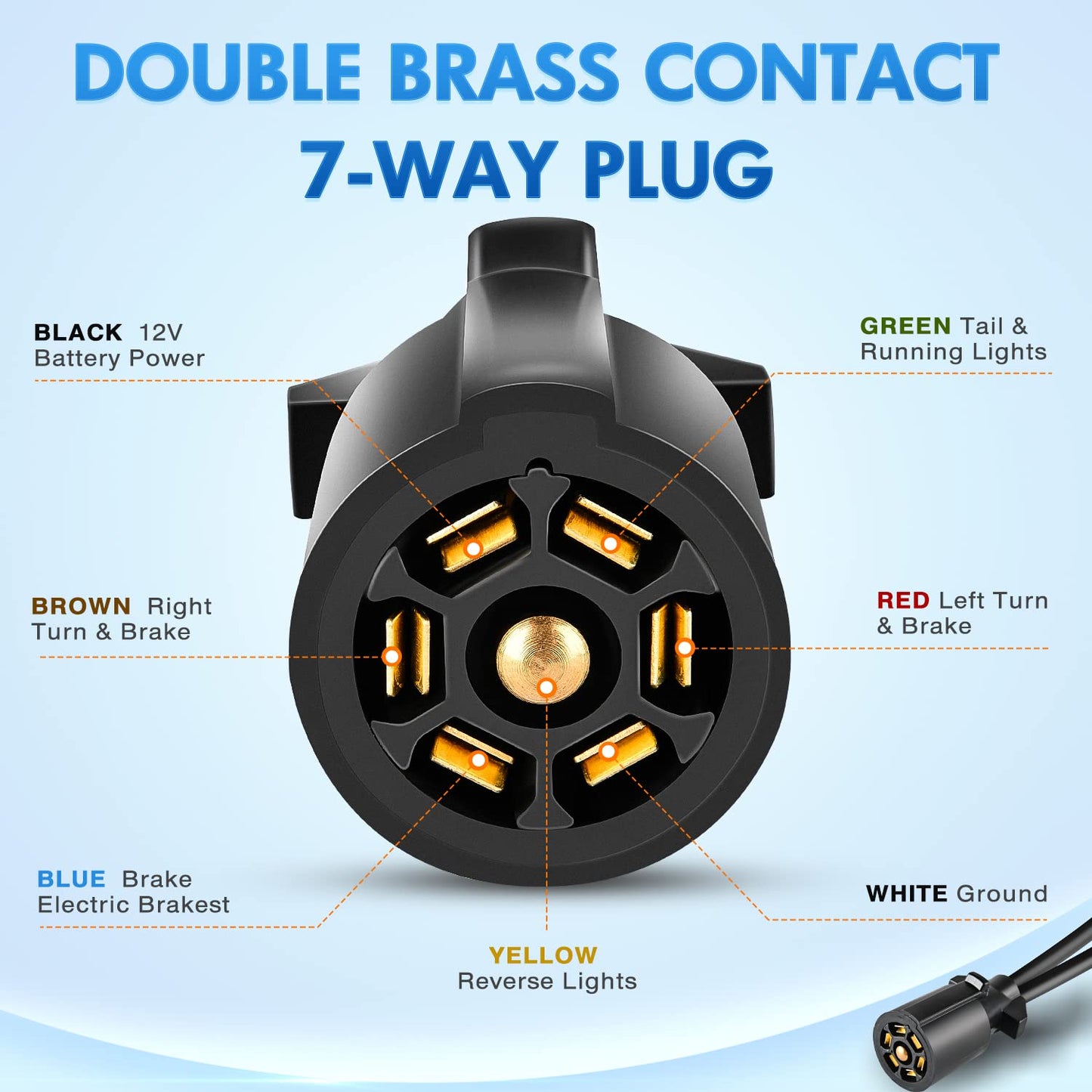

Male and Female Plug Side:
BLACK: 10AWG；12V Battery Power
GREEN: 14AWG；Tail & Running Lights
BROWN: 14AWG；Right Turn & Brake
RED: 14AWG；Left Turn & Brake
BLUE: 12AWG；Brake Controller Output
WHITE：10AWG；Ground
YELLOW：14AWG；Reverse Lights

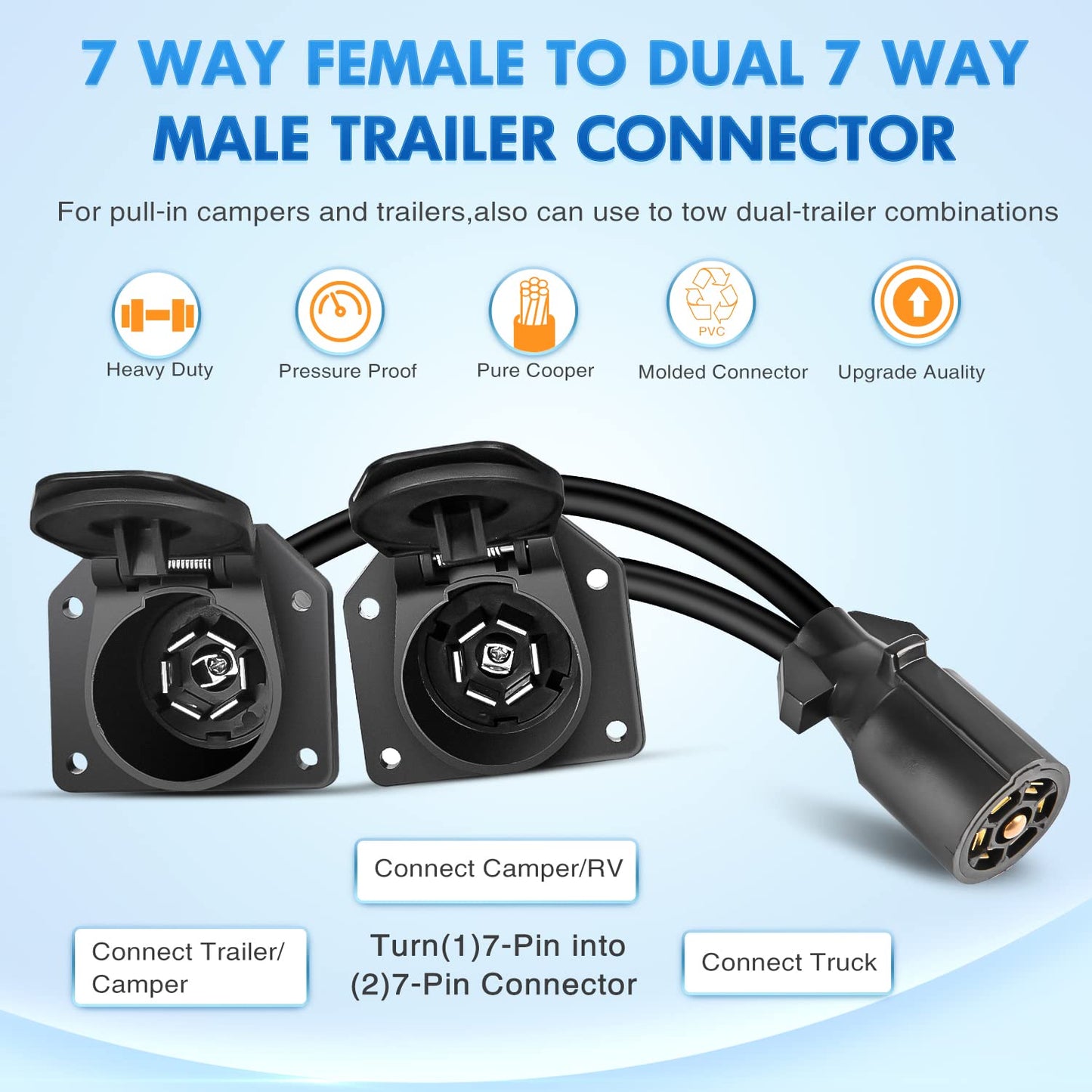

1 Female end plugs into the Truck/Vehicle, and 2 Male plugs into other ends such as trailer or campers.

Commonly used to connect a truck camper and trailer setup. It can also be used for towing a double-trailer combination.

Use this 7-Way Round RV Trailer Blade Connector to fulfill the below functions like Tail and running lights. Left turn and stop light, Right turn and stop light, Brake controller output Reverse lights, connect to 12V Power and Ground.

EAN: 0840323900157

Package Dimensions: 7.9 x 7.3 x 2.9 inches
